Monitoring Cisco IPSec VPN Tunnels with Nectus

,

Monitoring Cisco IPSec VPN Tunnels with Nectus

One of the key features introduced in Nectus 1.2.51 is ability to automatically discover and monitor Cisco IPSec VPN Tunnels terminated on ASA Firewalls and regular IOS routers.

  1. Tunnel Discovery

As part of regular scheduled network discovery Nectus attempts to detect existing VPN tunnels on all routers and firewalls by polling standard SNMP MIB: CISCO-IPSEC-FLOW-MONITOR-MIB

reserved for VPN Tunnels.

All discovered VPN tunnels can be seen in Main menu: Inventory → VPN Tunnels





All discovered tunnels displayed as a table with Terminating Device, Group, Local and Remote IP Address visible in individual columns.

You can assign a human friendly name to each tunnel by pressing Tunnel Edit button on the right.



  1. Creating Groups and Assigning Tunnels to Groups

Each Tunnel must be assigned to an individual group with newly discovered Tunnels being automatically assigned to a group with “Default” parameter set to On.

User can create multiple different groups and group tunnels in any way that is appropriate.

User can change Tunnel-to-Group assignment by using context menu or by using “Edit VPN Tunnel” button.



  1. Enabling Tunnel Monitoring

Once all Tunnels are discovered and added to a correct group you can enable monitoring on group level by setting “Enable Monitoring” check-button to “ON”



After “Enable Monitoring” flag is set to ON, Nectus starts checking Tunnel’s status every 5 min and creating records in Alert log along with sending Alert emails in case if Tunnel is down.



Real Time status for all tunnels can be seen in left side panel “VPN Tunnel”

By using right-click on Tunnel’s name you can access rich context menu where you can move tunnels to a different group, delete Tunnel, change Tunnel’s name or

View Tunnel’s Phase 1 and Phase 2 Information.





“View Tunnel Info” provides low level Phase 1



And Phase 2 Information along with encryption domain parameters and traffic counters





Nectus Installation Procedure

,

Nectus Installation Procedure

Server Requirements:   Windows Server 2012 or newer.  8GB of RAM.

1. File Preparation

You start with downloading Nectus Distribution File from www.nectus5.com

Download the ZIP file called Nectus 1.2.51.zip and extract it to a temporary folder.

In the folder you will find two files:



Keep the htdocs.zip file compressed. Start installation by launching file Nectus Setup 1.2.51.exe

2. Nectus Installation

Accept the license agreement on the first page.



Choose an application installation folder.



Choose whether you want Nectus to discover Network devices or not.



If you selected “Yes” for the Network Device Discovery, Specify the version of the SNMP Protocol.



Then specify SNMP credentials.



Specify up to 10 IP Subnets where Nectus will be performing Network Discovery.





Setup an Administrator account.



Then click install, which will automatically complete installation.



When the installation Is complete, you will see the following page.



After you click Finish, the Nectus login page will come up, where you need to provide the credentials of the admin account you created during Installation.



when you log into Nectus you will see a Network Discovery Progress page.



Click “OK” to close it.

3. License Generation

Next, the license page will come up.

If you do not have a permanent license ready, Click “Generate Temporary License” button.



Complete the “Temporary License” Form and press the “Generate Temporary License” button.

Nectus server must have an Internet access to successfully generate the temporary license.

After temporary license is generated, Nectus is fully operational and ready to be used.



Configuring Network Device Configuration Backup in Nectus 1.2.51

,

Network Device Configuration Backup

Nectus version 1.2.51 introduced several enhancements for Network Device Configuration backup procedure.

User can now use different backup credentials and fully customizable backup scripts for different Device Views. This allows user to create different backup scripts for different vendors or different product lines with different CLI.

User can control what configuration information is included in configuration backup and include supplementary information such as hardware inventory info, current ports status and list of connected devices to a scheduled configuration backup process.

Creating Device View for Configuration Backups

Very first step in setting up your configuration backup is to create Device Views that will contain devices that require common Credentials and Configuration Scripts.

For example, you can create Device View that will contain all Cisco ASA Firewalls and Separate Device View that will contain all Cisco IOS Devices.

The reason those devices require separate Device Views is that Configuration Backup script differ for ASA and IOS devices.

Also use different Device View if devices require different login credentials.

To Create a Device Views, go to Inventory → Views → SNMP Device Views



Creating Login Credential Sets

Next step is to define your login credentials that will be used by Configuration backup engine to login to devices and executing Backup Scripts.

To Create a Backup login Credentials, go to:

Settings → Device Configuration Backups → Backup Credentials

Creating Backup Scripts

Next step is to create Backup Scripts that will be executed by backup engine once it is logged in to device.

Here is the example of sample Backup Script for Cisco ASA Devices:

config terminal

pager 0

show running-config

You can further enhance backup script by including for example hardware inventory information command: “show inventory” etc.

It is important to create a script that will generate all the information required for backup without pagination.

To Create Backup Scripts, go to:

Settings → Device Configuration Backups → Backup Scripts

In some cases, output generated by backup script may contain highly sensitive information that may not be desired to be stored anywhere.

For cases like this Nectus offers “exclusion rules” option in Configuration Script definition where you can define which config lines must be excluded from the text before it is stored in database.

You can use RegEx syntax to define those exclusion rules.

Creating Backup Jobs

Next step is to create a Backup Job definition where you can combine Device View with specific Backup Credential Set and Backup Script.

To Create Backup Jobs, go to:

Settings → Device Configuration Backups → Backup Jobs

Enable Config Backup, Set Time and Miscellaneous Settings

And final step is to define time for scheduled backup and to turn it ON.

To set a time for Configuration Backup, go to:

Settings → Device Configuration Backups → Schedule



To enable configuration Backup go to:

Settings → Device Configuration Backups → General Settings



Additional Backup Parameters are available on “Backup Parameters” Tab where you can control for how long the backup files should be stored in DB

and whether you want you to backup up configuration if it has not changed since the last time it was backed up.



Note: Backup engine attempts SSH connection first and if SSH connection fails it will attempt a Telnet.



Initial IPv4 IPAM Configuration

Initial IPv4 IPAM Configuration

Step 1. Define your IPv4 Address Space.

Very first step in setting up your Nectus IPAM is to define your IPv4 Address Space.

Address Space is list of major subnets that represent all your address space that you

planning to use for IP address allocation.

Good examples of subnets that you normally list as your address space definition is

10.0.0.0/8

192.168.0.0/16

172.16.0.0/12

To complete your Address Space definition, go to:

Settings → General Settings → IPAM Integration (Tab: IPv4 Address Space)

Step 2: Add DNS Servers.

Next Step is to complete integration of your existing DNS Servers with Nectus IPAM

Add your DNS Servers to Nectus in:

Settings → General Settings → IPAM Integration (Tab: DNS Servers)

Note: Nectus currently only supports integration with Microsoft Windows based DNS Servers.

Integration with DNS Server allows Nectus to dynamically create DNS records for Static IP reservations and to Import existing DNS records into IPAM database.

For Nectus to be able to communicate with DNS Servers WMI Integration must be complete.

Complete WMI Integration in Settings → General Settings → WMI Integration

Step 3: Define your DNZ Zones

Next step after adding DNS Servers is to define your DNS Zones. You can manually add your DNS Zones to IPAM or import is from your DNS Servers.

To define your DNS Zones go to:

Settings → General Settings → IPAM Integration (Tab: DNS Zones)

Step 4: Add DHCP Servers

By adding your DHCP servers to Nectus IPAM your can access rich GUI interface for managing your DHCP Scopes, Reservations, Leases and DHCP Options.

Note: Nectus currently only supports integration with Microsoft Windows based DHCP Servers.

To add your DHCP Servers go to:

Settings → General Settings → IPAM Integration (Tab: DHCP Servers)

For Nectus to be able to communicate with DHCP Servers WMI Integration must be complete.

Complete WMI Integration in Settings → General Settings → WMI Integration

Step 5: Define Standard IPAM Tags

Nectus IPAM provide extensive list of Tags that can be used for any of the IPAM Subnets.

Current list of Standard Tags:

BGP AS Number

Customer Name

Stack

Datacenter

Context

VRF

Project

Environment

Application

Remote Office

To define your Standard IPAM Tags go to:

Settings → General Settings → IPAM Integration (Tab: Standard IPAM Tags)

Step 6: Create IPAM Container Tree

Now we are ready to create an IPAM Container Tree hierarchy where you will be keeping all of the subnets.

IPAM Container tree can be organized in any way that is suitable for your business model.

One of the common examples that can be used is State-City-Datacenter-Application model.

To start creating IPAM Container levels go to IPAM left-side panel and use context menu available from right-click of your mouse.

You can right click on any existing container level and create a sub-level container by using “Create New Container Level” option in context menu.

You can Create, Delete and Move any of the container levels by using corresponding option in context menu.

Step 7. Importing Subnets from DHCP Servers

Once IPAM container tree is created we are ready to start populating it with subnets.

We can manually add individual subnets to each container, but it is much easier to Import majority of your existing subnets from DHCP Server and from your IGP Routing Table.

The first place where we can import is from DHCP Servers.

Go to Tools → IPAM Tools



And press “Import Subnets from DHCP Servers”

Select DHCP Servers from which you want to import subnets and select Destination container where you want discovered subnets to be placed.

Nectus will display all discovered subnets and will ask for confirmation before importing it into the Database.

Step 8: Importing Subnets from IGP Routing Table

And last Step in Nectus IPAM Initial configuration is to Import all of your existing subnets from your IGP Routing Table.

Go to Tools→ IPAM Tools



Press button “Import Subnets from routing Table”

Provide IP Address of any of your backbone routers, select destination container for imported subnets and press “Import” button.

Nectus will import all the subnets from IGP Routing Table starting from smallest (/32).

Nectus will not import any subnets that are overlapping with any of the subnets that are already present in Database.

Nectus will not import any of the BGP Subnets.

This Step concludes initial IPAM Configuration.

SNMP Device Status Color Codes

,

SNMP Device Status Color Codes

Nectus uses different colors to encode SNMP Device Status in Dashboards, Trees and Status Panels. There are three main color codes: Green, Red and Orange.

Green Color represent SNMP Device status when it is reachable by ICMP Probe and don’t have any critical interfaces Down.

Red Color represent SNMP Device status when it is not responding to ICMP Probe.

Orange Color represent SNMP Device that is reachable via ICMP but has at least one critical Interface down.

You can designate any Interface as critical by following these steps:

  1. Create Interface View that will contain all the Critical Interfaces
  2. Select this Interface View in Global Monitoring Settings

Critical Interfaces are marked by special “Star” icon in Interface List View

You can quickly add/remove Interface to Critical List by using Interface Context menu Option



How to collect Interface-VLAN membership info from Cisco Switch via SNMP (CISCO-VLAN-MEMBERSHIP-MIB)

,

How to collect Interface-VLAN membership info from Cisco Switch via SNMP (CISCO-VLAN-MEMBERSHIP-MIB)



CISCO-VLAN-MEMBERSHIP-MIB contain several usefull OIDs for collecting Interface VLAN membership information from Cisco Swithes

1.3.6.1.4.1.9.9.68.1.2.2.1.1 (vmVlanType)

1.3.6.1.4.1.9.9.68.1.2.2.1.2 (vmVlan)

1.3.6.1.4.1.9.9.68.1.2.2.1.3 (vmPortStatus)

1.3.6.1.4.1.9.9.68.1.2.2.1.4 (vmVlans)

1.3.6.1.4.1.9.9.68.1.2.2.1.5 (vmVlans2k)

1.3.6.1.4.1.9.9.68.1.2.2.1.6 (vmVlans3k)

1.3.6.1.4.1.9.9.68.1.2.2.1.7 (vmVlans4k)



Lets see what our LAB switch reports on these for Interface with ifIndex = [4]



OID VLAN Memership Type: 1.3.6.1.4.1.9.9.68.1.2.2.1.1

1 = static, 2 = dynamic, 3 = multiVlan

Output Example: ‘1.3.6.1.4.1.9.9.68.1.2.2.1.1.4’ => “1” (VLAN statically assigned to this port)



OID VLAN ID of the Port: 1.3.6.1.4.1.9.9.68.1.2.2.1.1

Output Example: ‘1.3.6.1.4.1.9.9.68.1.2.2.1.2.4′ => “104” (Port is assigned to VLAN 104)



OID Port Status: 1.3.6.1.4.1.9.9.68.1.2.2.1.3

1 = Inactive, 2 = Active, 3 = Shutdown

Output Example: ‘1.3.6.1.4.1.9.9.68.1.2.2.1.3.4’ => “2” (Port is Active)



How to collect list of VLANs from Cisco Switch via SNMP (CISCO-VTP-MIB)

,

How to collect list of VLANs from Cisco Switch via SNMP (CISCO-VTP-MIB)

CISCO-VTP-MIB contain several useful OID for collecting VLAN information from Cisco Switches



1.    1.3.6.1.4.1.9.9.46.1.3.1.1.1 (vtpVlanIndex)

2.    1.3.6.1.4.1.9.9.46.1.3.1.1.2 (vtpVlanState)

3.    1.3.6.1.4.1.9.9.46.1.3.1.1.3 (vtpVlanType)

4.    1.3.6.1.4.1.9.9.46.1.3.1.1.4 (vtpVlanName)

5.    1.3.6.1.4.1.9.9.46.1.3.1.1.5 (vtpVlanMtu)

6.    1.3.6.1.4.1.9.9.46.1.3.1.1.6 (vtpVlanDot10Said)

7.    1.3.6.1.4.1.9.9.46.1.3.1.1.7 (vtpVlanRingNumber)

8.    1.3.6.1.4.1.9.9.46.1.3.1.1.8 (vtpVlanBridgeNumber)

9.    1.3.6.1.4.1.9.9.46.1.3.1.1.9 (vtpVlanStpType)

10.    1.3.6.1.4.1.9.9.46.1.3.1.1.10 (vtpVlanParentVlan)

11.    1.3.6.1.4.1.9.9.46.1.3.1.1.11 (vtpVlanTranslationalVlan1)

12.    1.3.6.1.4.1.9.9.46.1.3.1.1.12 (vtpVlanTranslationalVlan2)

13.    1.3.6.1.4.1.9.9.46.1.3.1.1.13 (vtpVlanBridgeType)

14.    1.3.6.1.4.1.9.9.46.1.3.1.1.14 (vtpVlanAreHopCount)

15.    1.3.6.1.4.1.9.9.46.1.3.1.1.15 (vtpVlanSteHopCount)

16.    1.3.6.1.4.1.9.9.46.1.3.1.1.16 (vtpVlanIsCRFBackup)

17.    1.3.6.1.4.1.9.9.46.1.3.1.1.17 (vtpVlanTypeExt)

18.    1.3.6.1.4.1.9.9.46.1.3.1.1.18 (vtpVlanIfIndex)



Note that output from out Lab Switch did not return any values for first OID: 1.3.6.1.4.1.9.9.46.1.3.1.1.1



VLAN State: 1.3.6.1.4.1.9.9.46.1.3.1.1.2

1 = Operational, 2 = Suspended, 3 = mtuTooBigForDevice, 4 = mtuTooBigForTrunk

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.1’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.10’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.100’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.101’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.102’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.109’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.1000’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.1001’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.1002’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.1003’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.1004’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.2.1.1005’ => “1”



VLAN Type: 1.3.6.1.4.1.9.9.46.1.3.1.1.3

1 = Ethernet, 2 = FDDI, 3= TokenRing, 4 = FDDI, 5 = rtNet, 6 = Depreciated

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.1’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.10’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.100’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.101’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.102’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.109’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.1000’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.1001’ => “1”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.1002’ => “2”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.1003’ => “3”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.1004’ => “4”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.3.1.1005’ => “5”



VLAN Name: 1.3.6.1.4.1.9.9.46.1.3.1.1.4

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.1’ => “default”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.10’ => “VLAN0010”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.100’ => “VLAN0100”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.101’ => “VLAN0101”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.102’ => “vlan102”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.109’ => “VLAN0109”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.1000’ => “VLAN1000”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.1001’ => “VLAN1001”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.1002’ => “fddi-default”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.1003’ => “token-ring-default”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.1004’ => “fddinet-default”

‘1.3.6.1.4.1.9.9.46.1.3.1.1.4.1.1005’ => “trnet-default”



How to collect list of MAC addresses from Cisco Switch via SNMP (dot1dTpFdbEntry)

,

How to collect list of MAC addresses from Cisco Switch via SNMP (dot1dTpFdbEntry)

One of the ways to get list of MAC addresses from the forwarding table of Cisco switch is via SNMP MIB: dot1dTpFdbEntry

This MIB branch contain three OIDs:

1.3.6.1.2.1.17.4.3.1.1 (dot1dTpFdbAddress)

1.3.6.1.2.1.17.4.3.1.2 (dot1dTpFdbPort)

1.3.6.1.2.1.17.4.3.1.3 (dot1dTpFdbStatus)

1.3.6.1.2.1.17.4.3.1.1 (dot1dTpFdbAddress) contain list of MAC addresses in Binary format

1.3.6.1.2.1.17.4.3.1.2 (dot1dTpFdbPort) contain IfIndex value of the interface associated with each MAC Address

1.3.6.1.2.1.17.4.3.1.3 (dot1dTpFdbStatus) contain Status code which gives information how each MAC was learned by the switch.



To get list of MAC address perform SNMP Get-Bulk request for “.1.3.6.1.2.1.17.4.3.1.1”

Here is the Example of output from our LAB Switch:

‘1.3.6.1.2.1.17.4.3.1.1.0.21.198.146.146.151’ => “ƒ’—”

‘1.3.6.1.2.1.17.4.3.1.1.0.25.185.178.231.213’ => “¹²çÕ”

‘1.3.6.1.2.1.17.4.3.1.1.0.33.216.202.216.128’ => “!ØÊ؀”

‘1.3.6.1.2.1.17.4.3.1.1.0.34.144.251.146.97’ => “”û’a”

‘1.3.6.1.2.1.17.4.3.1.1.0.80.86.156.43.191’ => “PVœ+¿”

‘1.3.6.1.2.1.17.4.3.1.1.0.80.86.156.49.102’ => “PVœ1f”

‘1.3.6.1.2.1.17.4.3.1.1.0.80.86.156.69.113’ => “PVœEq”



Notice that actual MAC Addresses returned look like some garbage characters but those are actually MAC address in ASCII format that needs to be converted to HEX to get a conventional xx:xx:xx:xx:xx:xx style.

Lets take last line: ‘1.3.6.1.2.1.17.4.3.1.1.[0.80.86.156.69.113]’ => “PVœEq”

If we take ASCII text (PVœEq) and convert to HEX,  we will get  50:56:9C:45:71

If we take Decimal [0.80.86.156.69.113] and convert to HEX, we will get 0:50:56:9C:45:71

So we have a MAC address on both sides.



To get list of associated Ports for each MAC address perform SNMP Get-Bulk request for “.1.3.6.1.2.1.17.4.3.1.2”

Here is the Example of output from our LAB Switch:

‘1.3.6.1.2.1.17.4.3.1.2.0.21.198.146.146.151’ => “2”

‘1.3.6.1.2.1.17.4.3.1.2.0.25.185.178.231.213’ => “2”

‘1.3.6.1.2.1.17.4.3.1.2.0.33.216.202.216.128’ => “1”

‘1.3.6.1.2.1.17.4.3.1.2.0.34.144.251.146.97’ => “1”

‘1.3.6.1.2.1.17.4.3.1.2.0.80.86.156.43.191’ => “2”

‘1.3.6.1.2.1.17.4.3.1.2.0.80.86.156.49.102’ => “2”

‘1.3.6.1.2.1.17.4.3.1.2.0.80.86.156.69.113’ => “2”

Values returned represent IfIndex values for corresponding Interfaces associated with each MAC Address. You need to use [ID substring] to match ifIndex value to MAC Address.

And finally, to get a Status code to each MAC address perform SNMP Get-Bulk Request for 1.3.6.1.2.1.17.4.3.1.3



Example of output from our LAB Switch:

‘1.3.6.1.2.1.17.4.3.1.3.0.21.198.146.146.151’ => “3”

‘1.3.6.1.2.1.17.4.3.1.3.0.25.185.178.231.213’ => “3”

‘1.3.6.1.2.1.17.4.3.1.3.0.33.216.202.216.128’ => “3”

‘1.3.6.1.2.1.17.4.3.1.3.0.34.144.251.146.97’ => “3”

‘1.3.6.1.2.1.17.4.3.1.3.0.80.86.156.43.191’ => “3”

‘1.3.6.1.2.1.17.4.3.1.3.0.80.86.156.49.102’ => “3”

‘1.3.6.1.2.1.17.4.3.1.3.0.80.86.156.69.113’ => “3”

Possible Values codes are

1 = Other

None of the following. This would include the case where some other MIB object (not the corresponding instance of dot1dTpFdbPort, nor an entry in the dot1dStaticTable)

is being used to determine if and how frames addressed to the value of the corresponding instance of dot1dTpFdbAddress are being forwarded.

2 = Invalid

This entry is no longer valid (e.g., it was learned but has since aged out), but has not yet been flushed from the table.

3 = Learned

The value of the corresponding instance of dot1dTpFdbPort was learned and is being used.

4 = Self

The value of the corresponding instance of dot1dTpFdbAddress represents one of the bridge’s addresses.

The corresponding instance of dot1dTpFdbPort indicates which of the bridge’s ports have this address.

5 = Mgmt

The value of the corresponding instance of dot1dTpFdbAddress is also the value of an existing instance of dot1dStaticAddress.



Important Note: This process may need to be adjusted if  “per-VLAN” SNMP Contexts being used. In that case you must repeat this process separately for each VLAN by adding “@n” to SNMP community string where “n” is the VLAN ID.

How to Add/Discover single SNMP Device in Nectus

,

How to Add/Discover Single SNMP Device in Nectus

Starting from Version 1.2.49 process of adding single device to Nectus database was greatly simplified and improved.

To discover single SNMP device open in Main menu Tools → Manual Discovery Start

In Manual Discovery window Select Partial Discovery and specify single IP address with /32 Mask for Subnet.

Press Start Button to start a Discovery process.

After Discovery starts you can monitor its progress in Discovery log located in

Top Menu Logs → Discovery Log

Each Discovery Job will have individual line in Discovery log

Manually Initiated Discoveries will have string “Manual” in Type Column as opposed to “Schedule” to scheduled automatic discoveries.

Each Discovery log record contain information about how many overall and new devices were discovered at each Discovery job.

If your manual Discovery job shows “0” New SNMP Devices discovered then you need to verify IP address, SNMP configuration and overall availability of device that you want to discover.



AWS System Variables for Email and SMS Alerts

,

This is the list of Nectus System Variables that can be used in AWS Monitoring Email or SMS Alerts.

AWS:
“%metric_name%”
“%metric_namespace%”
“%metric_value%”
“%unit_name%”
“%instance_id%”
“%instance_name%”
“%instance_region%”
“%current_time%”
“%time%”

WMI System Variables for Email Alerts

This is the list of WMI System Variables that  can be used in Email and SMS Alerts
“%metric_name%”
“%metric_value%”
“%process_name%”
“%service_name%”
“%unit_name%”
“%wmi_server_ipv4%”
“%wmi_server_hostname%”
“%wmi_server_group%”
“%device_name%”
“%device_id%”
“%filter_name%”
“%event_log_file%”
“%event_type_name%”
“%event_text%”
“%event_source%”
“%event_id%”
“%event_category%”
“%current_time%”
“%time%”

Manual Network Discovery Operation

,

Manual Network Discovery Operation

Starting from Version 1.2.49 Nectus implements new and enhanced user interface for manually starting and stopping of Network Discovery.

To manually start network discovery, go to Tools → Manual Discovery Start

Where you will be presented with two options: Full Discovery and Partial Discovery

Full Discovery will perform ICMP/SNMP Scan on all subnets configured in global Network Discovery settings.

Partial Discovery gives an option to limit discovery to very specific subnets or single IP address.

In addition to Manual Start/Stop Option, Version 1.2.49 shows Discovery log with new column Type that differentiates Manual or Scheduled Discovery execution types.



Monitoring Windows Server Storage Utilization with Nectus

,

Monitoring Windows Server Storage Utilization with Nectus

In this chapter, you’ll learn how to use WMI to monitor Windows Server Storage Utilization. Nectus lets you create Profiles that specify which Servers to monitor with WMI and to send Alerts related to them. It also provides graphs of Server Utilization over time.

The specific topics we will cover in this chapter are:

  1. What is WMI?
  2. Why Monitor Windows Server Storage Utilization?
  3. Creating a WMI Server Group
  4. Adding a Server to the WMI Server Group
  5. Creating and Configuring a WMI Monitoring Profile
  6. Assigning a Profile to the WMI Server Group
  7. Viewing a Storage Utilization Graph

1. What is WMI?

WMI (Windows Management Instrumentation) is a set of specifications and interfaces that provides information about the status of local and remote computers running Microsoft Windows. In this chapter we look at how Nectus uses WMI to monitor the Storage Utilization on Windows Servers and send Alerts based on that information.

Note: WMI is the Microsoft implementation of the Web-Based Enterprise Management (WBEM) standard and the Common Information Model (CIM) standard from the Distributed Management Task Force (DMTF).

2. Why Monitor Windows Server Storage Utilization?

Monitoring when Storage Utilization goes outside of the expected Thresholds alerts you to various problems. For example, exceeding the Maximum Threshold could indicate that a Server needs a larger disk, or that some other application is using space on the disk. Utilization below the Minimum Threshold could indicate that data is not being received by the Server, or a problem is keeping the data from being written to the disk.

3. Creating a WMI Server Group

To create a WMI Server Group open the WMI Servers Panel on the Nectus Home Screen. Right-click the WMI Servers list. In the menu that appears, click Add New Group.

This opens the “Add New WMI Server Group” dialog box.

Enter a Group Name, then select the Email Groups and SMS Groups that will receive Alerts.

4. Adding a Server to the WMI Server Group

To add a Windows Server to the WMI Server Group right-click the Group and select Add New WMI Server.

This opens the “Add WMI Server” dialog box.

Enter the IP address of the Server you want to add to the Group. Alternately, you can move a Server from its current Group to this Group by right-clicking the Server and using the Move WMI Server to option.

5. Creating and Configuring a WMI Monitoring Profile

To create a WMI Monitoring Profile go to the Nectus Home Screen and select Monitoring -> WMI Monitoring Settings.

This opens the “WMI Monitoring Settings” dialog box.

Click Add Profile -> Disk.

Enter the Monitoring Profile Name and check the Enabled box next to the Disk Used Space metric. Check the types of Alerts you want the Profile to send.

Check the Default Profile box if you want to make this the new default WMI Monitoring Profile.

5.1 Editing Disk Used Space Options

Select the Disk Used Space Options icon to open the “WMI Options – Disk Used Space, %” dialog box.

Set the Alert Thresholds you want to monitor, as well as the number of Consecutive Readings that a Threshold must be exceeded before triggering an alert. Nectus checks the thresholds every 5 minutes, so setting Consecutive Readings to 3 means a value would need to exceed the assigned Threshold for 15 minutes before triggering an alert.

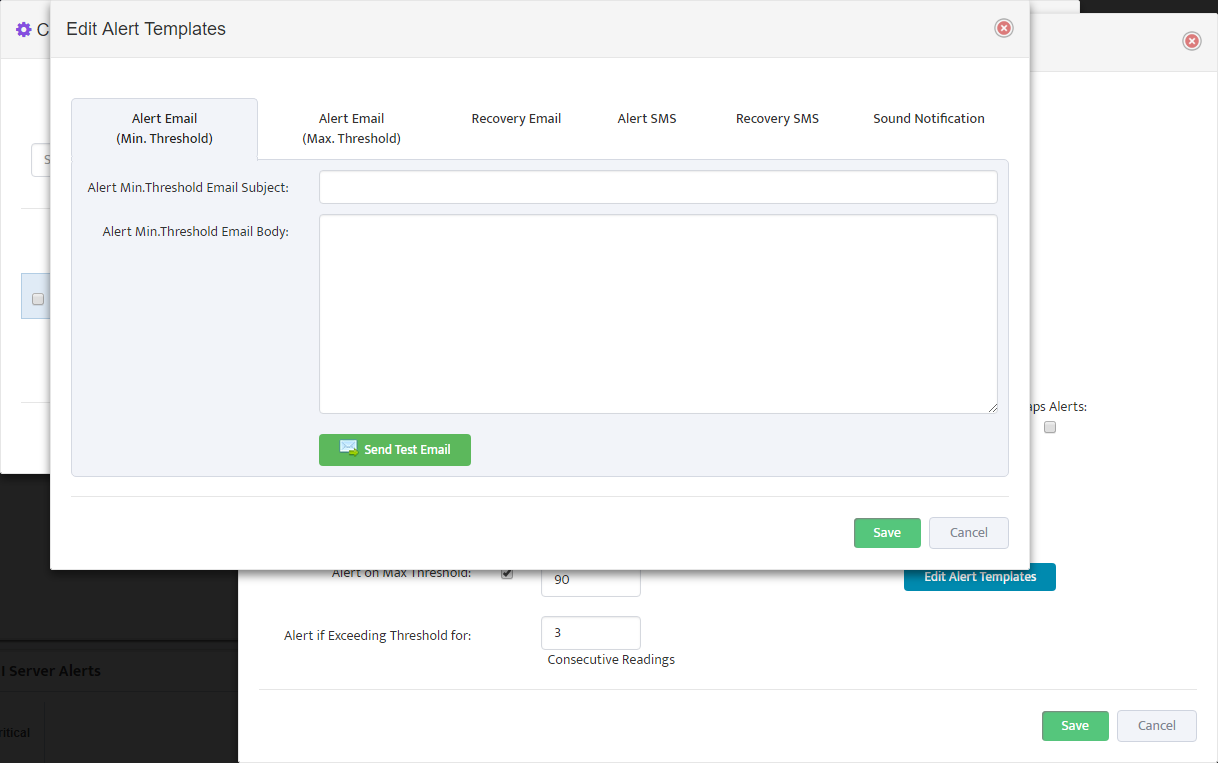

5.2 Editing Disk Used Space Alert Templates

To edit the format of Alerts return to the Disk tab of the “Add WMI Monitoring Profile” dialog box. Click the Disk Used Space Alert Templates icon to open the “Edit Alert Handler” dialog box.

6. Assigning a Profile to the WMI Server Group

In the WMI Servers Panel on the Nectus Home screen, open the WMI Servers list. Right-click the WMI Server Group and select Properties.

This opens the “Edit WMI Server Group” dialog box.

Select the WMI Monitoring Profile to use from the Monitoring Profile drop-down list.

Check the Enable Monitoring box to begin monitoring the Server Group using this Monitoring Profile.

7. Viewing a Storage Utilization Graph

To view a graph of Storage Utilization over time, right-click the Server you want information on and select Disk Used Space Graph.

This opens a “Disk Used Space Graph” which displays the changes in Storage Utilization over time.



List of system variables that can be used in Alert emails for SNMP Devices and Interfaces

,

List of system variables that can be used in Alert emails for SNMP Devices and Interfaces  (Version 2.48,  January 2019).

More system variables will be added in next releases.



Device Hostname:                %dev_hostname%
Device IPv4 Address:          %dev_ipv4_address%
Device IPv6 Address:          %dev_ipv6_address%
Device CPU Utilization:      %dev_cpu_utilization%
Device RAM Utilization:     %dev_ram_utilization%

Interface Name:                     %interface_name%
Interface Description:          %interface_description%
Interface Rx Utilization:      %interface_rx_utilization%
Interface Tx Utilization:       %interface_tx_utilization%

Device Site:       %dev_site_name%
Alert Time:        %time%

Outage Duration:      %outage_duration%

How to Configure Nectus Syslog Collector to use Local Storage

,

How to Configure Nectus Syslog Collector to use Local Storage

  1. To configure Nectus Syslog collector storage settings go to Main Menu

Settings → General Settings → Syslog Settings

  1. Configure Storage parameters according to this example:

“Syslog Remote Server DB Root Password” should be taken from this file:

C:\Program Files\Nectus\Web\Apache24\htdocs\protected\config\database.ini

  1. After Configuration is finished press “Test DB Connection” to test connectivity to DB

  1. After DB connectivity is Tested, Press “Run Integration Scripts” button to create required SQL Tables.
  2. After Integration Scripts has been executed, Restart Syslog collector service in

“Settings → Services Status”

After Syslog Service is Restarted it should be ready to process and store Syslog Traffic.



How to Configure Nectus NetFlow Collector to use Local Storage

,

How to Configure Nectus NetFlow Collector to use Local Storage

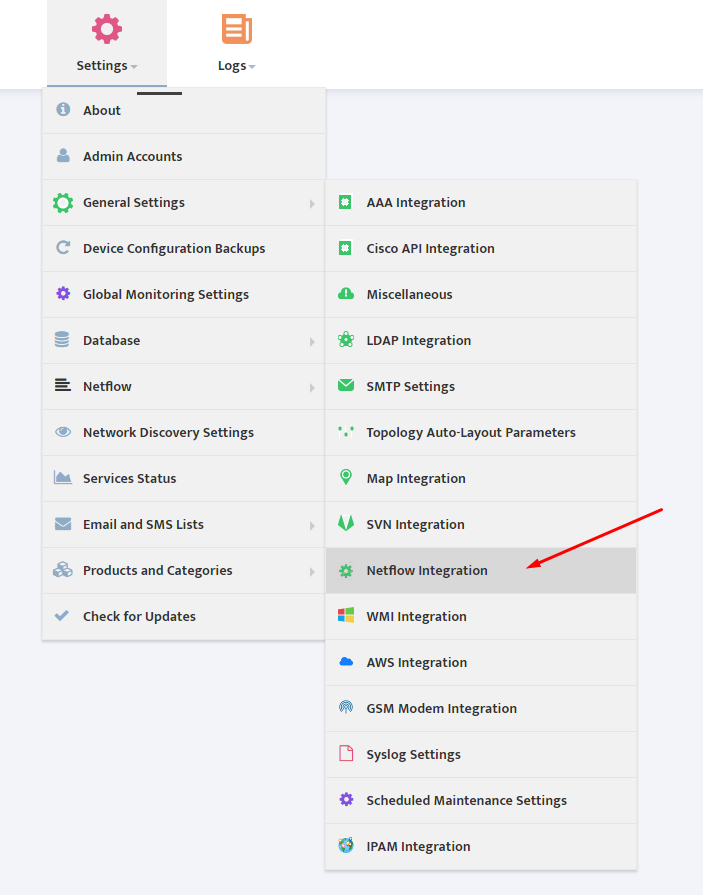

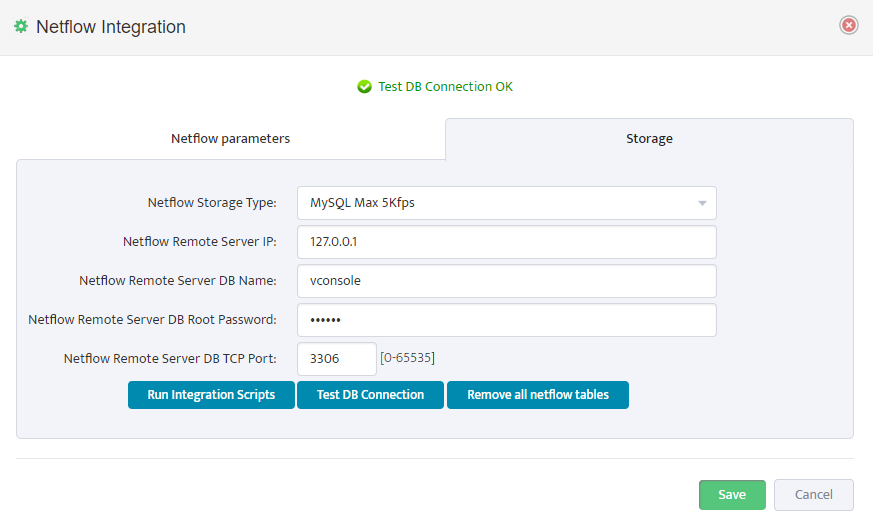

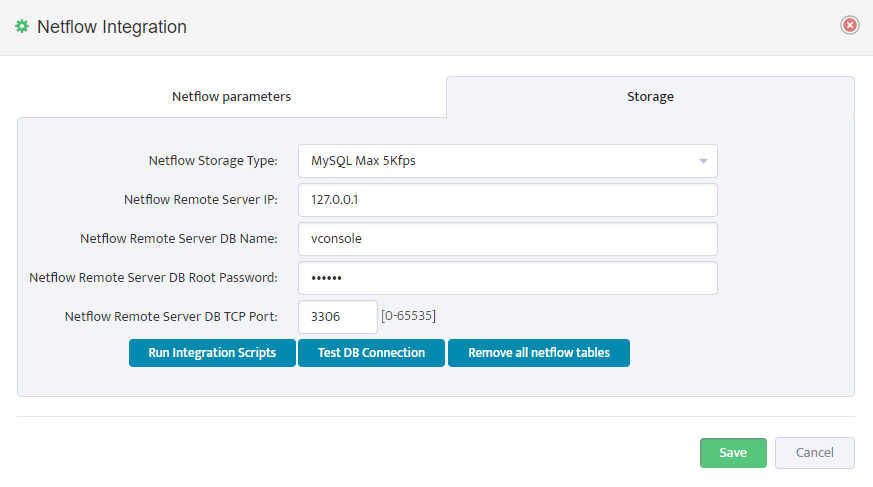

To configure Nectus Netflow collector storage settings go to Main Menu

Settings → General Settings → NetFlow Integration

Configure Storage parameters according to this example:

“NetFlow Remote Server DB Root Password” should be taken from this file:

C:\Program Files\Nectus\Web\Apache24\htdocs\protected\config\database.ini

After Configuration is finished press “Test DB Connection” to test connectivity to DB

After DB connectivity is Tested, Press “Run Integration Scripts” button to create required SQL

Tables.

After Integration Scripts has been executed, Restart NetFlow collector service in

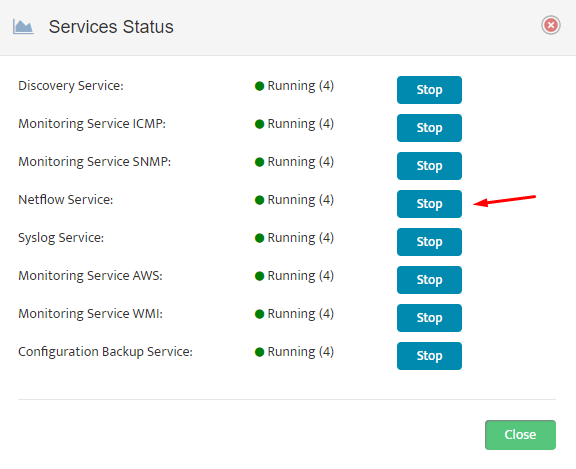

Top menu “Settings → Services Status”

After NetFlow Service is Restarted it should be ready to process NetFlow Traffic and store it in local DB.



Monitoring DHCP Scope Utilization on Windows DHCP Servers with Nectus

, ,

Monitoring Scope Utilization on Windows DHCP Servers with Nectus

In this chapter, you’ll learn how to use Nectus to enable and configure DHCP Scopes utilization monitoring on Windows DHCP Servers.

Nectus allows network engineers proactively monitor amount of free IP addresses in DHCP scopes and generate E-mail or Text alerts when number of free IP address falls below preset thresholds.

Nectus can also generate alert when number of free IP address exceeds predefined threshold as it may indicate underlying network operation problems when network devices not able reach DHCP server for leases.

Nectus uses basic WMI interface to collect scope and lease statistics from DHCP servers.

The specific topics we will cover in this chapter are:

  1. What is WMI?
  2. Why Monitor DHCP Scopes?
  3. Creating a DHCP Server Group
  4. Adding DHCP Server to Server Group
  5. Creating and Configuring Monitoring Profile
  6. Assigning Monitoring Profile to Server Group

1. What is WMI?

Nectus uses Windows Server WMI interface to collect basic information about DHCP scopes such as total number of IP addresses and current number of active leases.

WMI (Windows Management Instrumentation) is a set of specifications and interfaces that provides information about the status of local and remote computers running Microsoft Windows. In this chapter we look at how Nectus uses WMI to monitor DHCP Scope Utilization  and send alerts based on that information.

Note: WMI is the Microsoft implementation of the Web-Based Enterprise Management (WBEM) standard and the Common Information Model (CIM) standard from the Distributed Management Task Force (DMTF).

2. Why Monitor DHCP Scopes?

Availability of free IP addresses is a critical requirement for modern network. When DHCP scope runs out of addresses users are not able to join your network.

Typical network segments that heavily dependent on DHCP are LAN and Wi-Fi Users.

Several DDOS attack types are specifically targeting DHCP infrastructure and by exhausting DHCP pools with fake lease requests can bring down any network to its knees.

Sometimes regular business growth can cause corresponding grows in IP address utilization and if left undetected can eventual cause an outage and service degradation for DHCP dependent applications.

3. Creating a DHCP Server Group

First step is to create a new Server Group for our DHCP Servers.

Go to the Nectus Home Screen and select WMI Servers -> WMI Servers. In the menu that appears, click Add New Group.

This opens the “Add New WMI Server Group” dialog box.

Complete the fields that define the new Group and set Enable Monitoring.

4. Add a DHCP Server to Server Group

Now we need to define our DHCP Server and add those to Server Group.

To add a Windows DHCP Server to the Server Group right-click the Group and select Add New WMI Server.

This opens the “Add WMI Server” dialog box.

Enter the IP address of the Server you want to add to the Group.

Note: You can move a Server between different Groups by right-clicking the Server and using the Move WMI Server to option.

5. Creating and Configuring Monitoring Profile

Monitoring Profile is a list of Metrics that can be applied to Server Group to tell Nectus which specific metrics must be monitored for given Server Group.

To create new Monitoring Profile to go Monitoring -> WMI Monitoring Settings and press

“Add Profile” button

Monitoring Profile Configuration Interface will appear.

Assign Profile Name and enable “DHCP Scope Usage” check-button on “DHCP” Tab

Configure Max/Max Threshold Values for Alerts by pressing on “Options” button

Note: Monitoring Interval is 5 min therefore 3 for “Consecutive Readings” value will trigger Alert

only if Threshold condition are True for 15 minutes.

6. Assigning Monitoring Profile to Server Group

Next and the final step is to assign Monitoring Profile to the DHCP Server Group that we created.

Right Click on DHCP Server Group in left side panel and Select “Properties”

Select Monitoring Profile from the list of available Profiles and Click on “Enable Monitoring” check-button.

We are all set and ready to start proactive monitoring of your DHCP Infrastructure.

Download the best IPAM    https://www.nectus5.com/download/





Importing subnets to IPAM from IGP routing protocols

,

Importing subnets to IPAM from IGP routing protocols

Most existing IPAM tools require manual subnet configuration, which is by far the most time-consuming step in IPAM deployment. Nectus offers unique automated features that make the initial configuration fast and easy. One such feature is an automatic import of subnets from the IGP routing protocols like OSPF, EIGRP, or ISIS. Here is how it’s done.

Importing subnets to IPAM from IGP

In the Main Menu, go to Inventory → IMAP Subnets and Reservations.

This opens an “IPAM Subnets” window with “IPv4 subnets” tab. Click the Import Subnets from Routing Table button.

In the “Import Subnet from IGP” dialogue box that appears, specify the IP address of the backbone router from which you’ll be importing subnets, and a destination IPAM container where the imported subnets will be placed. Press the Import button to preload the subnets.

Nectus displays preloaded subnets in a table format, for your confirmation. Press Yes button to confirm import of subnets, and they will automagically appear in the designated IPAM container.



Importing subnets to IPAM from DHCP servers

,

Importing subnets to IPAM from DHCP servers

One of the most time-consuming steps in IPAM deployment is initial configuration. Whether you have 5 or 1000 network subnets, most IPAM software products require manual configuration of subnets. Nectus offers unique automated features that make this initial configuration step fast and easy. One such feature is an automatic import of the subnets from the DHCP servers, which is done in 2 quick steps.

Adding DHCP servers to IPAM

Begin the process by configuring the DHCP servers on “IPAM integration” page. In the Main Menu, select Settings → General Settings → IPAM Integration.

This opens an “IPAM Integration” page. To add DHCP servers to IPAM, select the DHCP Servers tab and press the Add button to open the “Add DHCP Server” dialogue box. Fill in the server name, IP address and Type, and press the Save button for each DHCP server you want to add to IPAM.

Importing Subnets from DHCP Servers to IPAM

Once the DHCP servers are configured, you are now ready to start importing subnets. In the Main Menu, go to Inventory → IMAP Subnets and Reservations.

This opens an “IPAM Subnets” window with “IPv4 subnets” tab. Click the Import Subnets from DHCP Server button to open the “Import Subnet from DHCP Server” dialogue box.

Select the DHCP servers from which you’ll be importing subnets, and a destination IPAM container where the imported subnets will be placed. Press the Import button to preload the subnets.

Nectus displays preloaded subnets in a table format, for your confirmation. Press Yes button to confirm import of subnets, and they will automagically appear in your designated IPAM container.



Management Interface Selection for Network Devices

,

Management Interface Selection for Network Devices

In this chapter, you’ll learn how Nectus selects Management Interfaces for Devices that are found during Discovery phase. Nectus will automatically select Management Interfaces using its own default logic. It also supports user-defined selection for cases where this is appropriate.

The specific topics we will cover in this chapter are:

  1. Default Logic for Management Interface Selection
  2. User-Defined Logic for Management Interface Selection
  3. Applying Selection Rules to Existing Devices

1. Default Logic for Management Interface Selection

During Discovery, Nectus finds all SNMP Devices on the network. Every Device has one or more Interfaces. Some of those Interfaces will have IP Addresses assigned to them, and could be used as the Management Interface for that Device.

Nectus has default logic for selecting the Management Interface for each Device. It checks every Interface on a Device looking for potential Management Interfaces. To be considered for selection as the Management Interface, an Interface must meet the following requirements:

  1. It must have a unique IP Address. Nectus will not select an Interface that does not have an IP Address, or that has an IP Address identical to some other Interface on the network.
  2. It must be Up. Netus will not select an Interface that is not Up.

From this list of possible Management Interfaces, Nectus selects one according to this priority list:

  1. An Interface name that begins with Mgmt
  2. An Interface name that begins with Loopback
  3. An Interface name that begins with Vlan
  4. Interface with lowest IP Address

If Nectus finds an Interface name that begins with Mgmt, it will use this as the Management Interface. If it does not find an Interface name that begins with Mgmt, it will look for one that begins with Loopback, and so on.

If Nectus does not find an Interface whose name starts with Mgmt, Loopback, or Vlan, it will select the lowest numbered IP Address on the Device.

This default logic allows Nectus to automatically select the correct Management Interface in most situations. To handle situations where the default logic is not appropriate, Nectus supports user-defined logic for Management Interface selection.

2. User-Defined Logic for Management Interface Selection

Defining your own Management Interface selection logic makes sense in two situations:

  • When the naming convention for your Interfaces doesn’t match the default rules
  • When specific Interfaces have special naming requirements

When a Device has applicable user-defined Management Interface selection logic, Nectus looks for that Interface before applying the default logic. As with the default logic, user-defined Management Interfaces:

  1. Must have a unique IP Address.
  2. Must be Up.

To create user-defined logic for a specific Device type right-click the Device name. In the menu that appears, select View Device Info.

This opens the “View Device Info” dialog box.

On the General Info tab, find the SNMP Platform ID and click the icon to the right of it to copy the ID.

Note: All Devices with the same model number have the same SNMP Platform ID.

Next Step is to go to Settings -> Products and Categories -> SNMP OID Libraries.

Select SNMP OID Libraries.

This opens the “SNMP OID Libraries” dialog box.

Select Management Interface Name in the Filter by OID Type list. Nectus displays all the current user-defined Management Interface Selection rules.

Click the Add button to open the “Add” dialog box.

Enter the SNMP Platform ID and the Management Interface Name Nectus should use for this type of Device.

3. Applying Selection Rules to Existing Devices

Defining new Management Interface selection rules will have automatic effect on all devices that will be discovered after rule is created but does not automatically apply those rules to existing Devices.

You need to tell Nectus to apply those changes to existing Devices.

To apply the user-defined selection rules to existing Devices, return to the “SNMP OID Libraries” dialog box and click the “Apply to Existing Devices” button.
